Get ZIQIAO 7 Inch TFT LCD Car Monitor Display Reverse Parking Monitoring System with Night Vision Side View Front Rear View Camera only US $12.94 - 41.22 just for today
click button to claim coupon
After finding and selecting your ZIQIAO 7 Inch TFT LCD Car Monitor Display Reverse Parking Monitoring System with Night Vision Side View Front Rear View Camera desired, the webpage usually has a CHECKOUT option. When you take a look at, you are often given a listing of shipping and payment options. Shipping options include common, expedited and overnight shipping. Depending on the shipping company being used and your location, standard shipment usually takes seven to twenty-one business days and fast shipping can take anywhere from two to six business days and nights.
Car Monitor:
Functions:

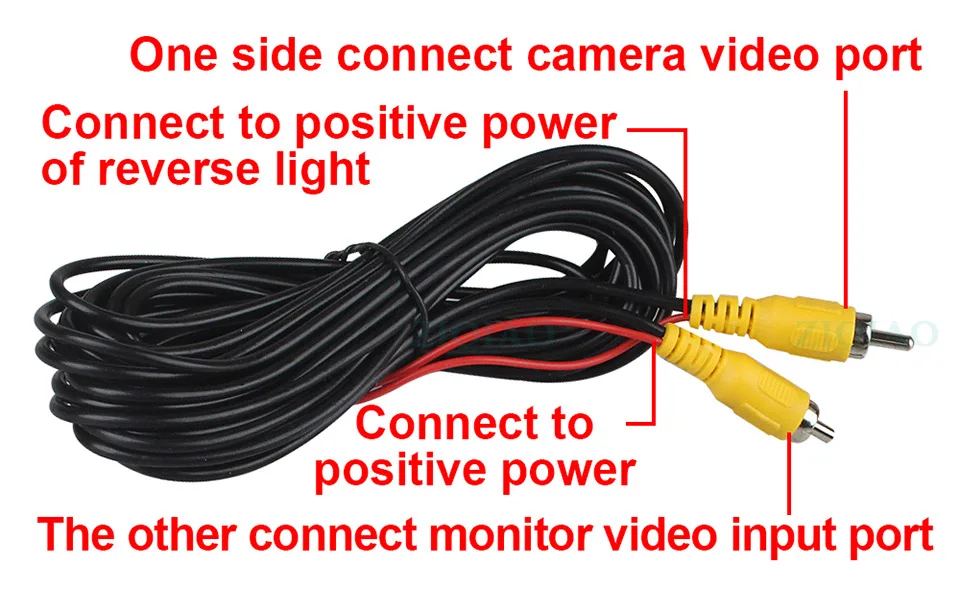

- 7 inch TFT LCD color display.- Languages: Chinese/English/Japanese/Russian/Italian/Spanish/German/French/Polish/Dutch- Full-color LED backlit display.- With 2 AV inputs: a.AV1 is displayed by default, it can be connected to car DVD, VCR and other video-frequency equipment; AV2 to the rear view camera of the vehicle. b.Connect the monitor's reversing trigger wire and the rear view camera's +12V power wire to the reversing light's +12V working circuit, and connect the rear view camera's -12V power wire to the reversing light's -12V working circuit. When reversing, display will automatically switch to rear-view image.- The aspect ratio of the screen is 16:9/4:3 adjustable; the image displayed on the screen can be rotated up, down, left and right- Brightness/contrast/color can be adjusted manually.- No audio input or output.- Configure the remote control.
Specifications:
-Screen size: 7 inch (16: 9)- Screen aspect ratio: 16:9/4:3- Dimensions: 250mm x 105mm- Resolution: 800 (W) x RGB x 480 IN)- Contrast ratio: 100: 1- Monitor signal mode: Analog signal- Monitor video format: PAL/NTSC (auto switch)- Power supply: DC 12 V-24 V- Power consumption: 6 W- Working temperature:-40 ° C-+ 80 ° C- Video: 2-way video input ( V1 / V2 )- Blue screen when no video signal- Operation mode: touch screen and remote control
Monitor Packing list:
1 x 7 inch TFT LCD monitor1 x Wireless remote control (without battery)1 x Connection Cable1 x User Manual
Rear view camera: optional
Functions:
The camera has the function of switching between front view and rear view, and the function of switching between parking guide lines without parking guide lines. The default is forward looking and no parking guide line. Cut the white line, the image captured by the camera has a parking guide line; cut the green line, the image captured by the camera is switched to the rear image.
Specifications:

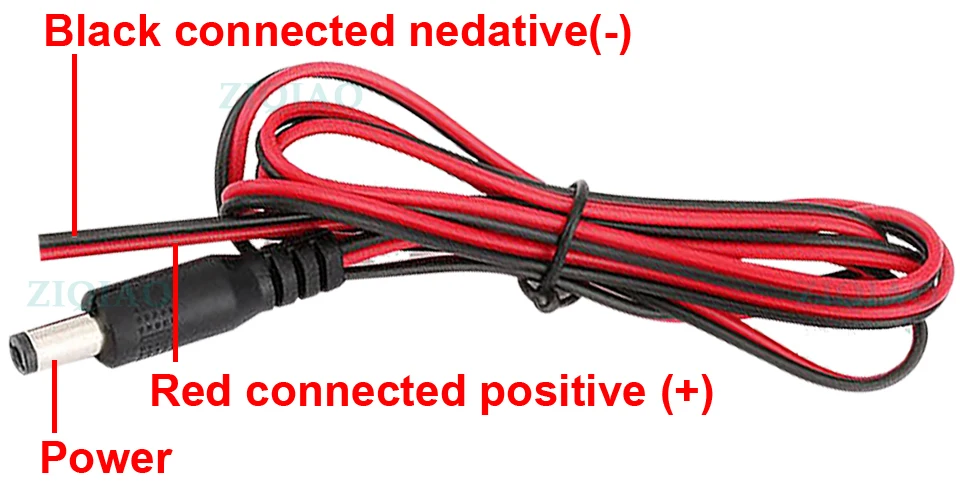

- Image sensor: CMOS- Video format: NTSC- Signal mode: CVBS- Pixel:720*480- Resolution : 480TV lines- Lens angle : Diagonal 150 degrees, flat angle 120 degrees- Rated voltage: DC 12V- Waterproof level: IP68- Length of power cable: 1M- Length of video cable: 6M- Working temperature: - 30 ° C + 80 ° C
HS070 Camera Packing List:
1 x Car rear vision camera1 x 6M video cable1 x 1M power cable1 x 18,5mm hole saw1 x Hexagonal pen1 x User Manual
HSB012 Camera Packing List:
1 x Car rear vision camera1 x 6M video cable1 x 1M power cable1 x 22.5mm hole saw1 x User Manual
rearview mirror monitor dynamic parking line camera rear view mirror monitor display kit
7" HD rearview mirror
2-way AV input
Video/reverse automatic switching,whether it is off or in standby mode, the revers will automatically disply the reversing image
Rear View Mirror Monitor
Picture flip function, do not worry about suspension installation.
Product parameters:
Menu: Brightness, Contrast, Chroma, Tint, Mode, Flip, Language, ResetAspect Ratio: 16 : 9, / 4 : 3Image flip adjustment: optional: up, down, left and right Languages:Chinese/English/Japanese/Russian/Italian/Spanish/German/French/Polish/Dutch
Installation Method:
The installation instructions are for reference only .It is recommended that a professional installer install the camera.
7 Inch TFT LCD Car Monitor Display Reverse Parking Monitoring System with Night Vision Side View Front Rear View Camera
About Us:
1. Our products must be strictly tested before being sent, and the products can only be sent to customers after they are proved to be intact.
2.You can mix all the items freely to place an order in our store.
About Transportation :
1.If the customer's order is successfully paid, we will choose a fast and reliable delivery method and send the package within 1-3 working days.
2.We are only responsible for shipping to the address filled in the order, please make sure that your shipping address is correct. We are not responsible for the incorrect or undeliverable address.
3.If you have not received your goods within buyer protection period,please contact us.We will try our best to track the shipment and get back to you as soon as possible with a reply .Our goal is try our best to make customers satisfied!
4.Import duties,taxes and charges occurred in buyer's country are not included in the item price or shipping charges.These charges are the buyer's responsibility.
Return & Refund:
1. If there is any problems with our products,you have 7 days to contact us and 15 days to return it from the date it was received. If this item is in your possession more than 15 days,it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
2.The buyer will be responsible for the shipping fees to return the items.
Feedback:
We are committed to adhering to the highest standards in the industry and strive to make all customers satisfied! Your positive feedback is the best encouragement for us. If you are satisfied with our products and service, please give us a 5-star and take pictures to share in the feedback column. If you are not satisfied with this purchase, please contact us. Communication is the best way to solve the problem, rather than providing negative feedback or initiating a public dispute.Please do believe that during the transaction, no matter what happens, we will do our best to provide customers with quality service.
